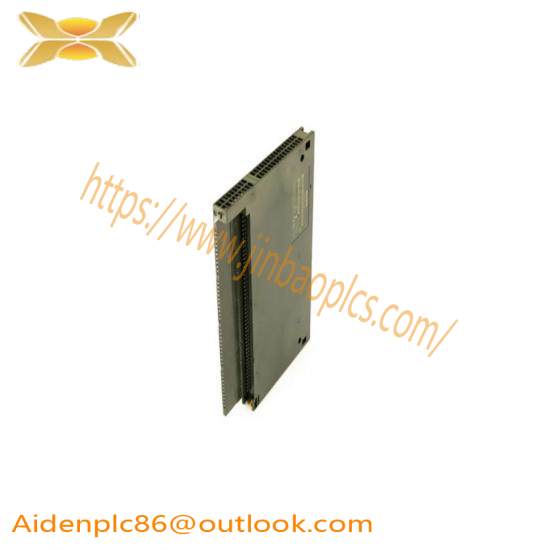

Siemens SM 422 Digital Output Module 6ES7422-1BH10-0AA0, Efficient Factory Automation Solution

Module Type:Digital Output

Model:SM 422

Isolation:Optically Isolated

Output Channels:16

Voltage Range:20 – 125V DC

Current Rating:1.5A per common

Diagnostic Function:With Diagnostics

Point per Common:8

Relay Output:Yes

    The Siemens SIMATIC S7-400 SM 422 Digital Output Module is a robust solution for complex industrial control systems. With its optically isolated design, it ensures high immunity against electrical noise and interference, making it ideal for environments where reliability is paramount.

    Each of the 16 digital outputs is capable of handling up to 2A of current, allowing for versatile control over a wide range of actuators and devices. The module supports both 120V AC and 230V AC, offering flexibility in installation across various industrial settings.

    Designed with durability in mind, this module can operate within a temperature range of -25°C to +60°C during runtime and withstand storage temperatures from -40°C to +85°C. This ensures stable performance under extreme conditions, enhancing system uptime and reliability.

    In addition to its technical specifications, the Siemens SIMATIC S7-400 SM 422 Digital Output Module is compliant with international standards IEC 61131-2 and EN 50178, ensuring compatibility with a wide range of Siemens and third-party automation systems.

    Installation and integration are streamlined with a standardized 120-pin DC 24V connector, allowing for quick setup and easy maintenance. The compact size and modular design facilitate seamless integration into existing automation infrastructure, minimizing downtime and enhancing efficiency.
