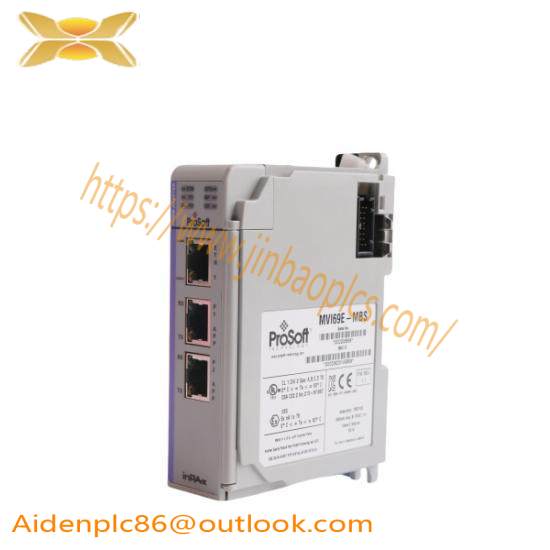

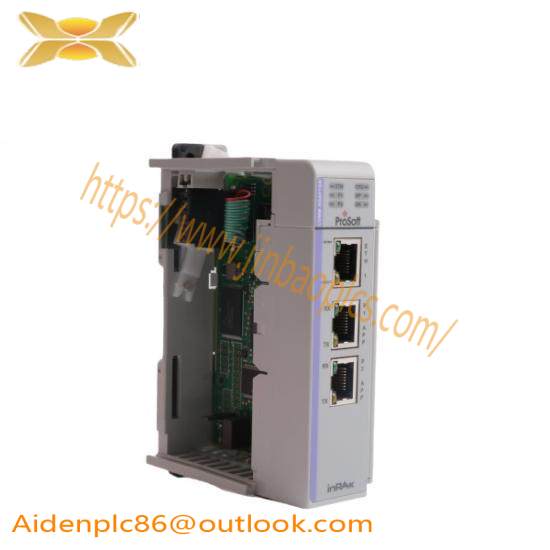

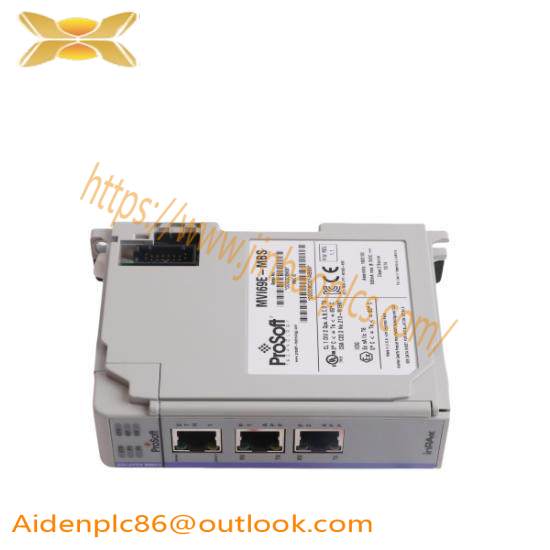

Prosoft MVI69E-MBS Modbus Serial Enhanced Communication Module

I/O Size:120/240 – 16 bit integers

Communication Parameters:Baud Rate: 110 to 115K baud, Stop Bits: 1 or 2, Data Size: 7 or 8 bits, Parity: None, Even, Odd, RTS Timing Delays: 0 to 65535 milliseconds

Floating Point Data:Supported for movement, including configurable support for Enron, Daniel® and other implementations

Product Type:ASCII

Module Compatibility:Compatible with CompactLogix processors supporting 1769 I/O bus capability version 16 and greater

Diagnostic Data:Available in RSLogix 5000 controller tags for decision-making based on node health

    Engineered with advanced licensed backplane technology, the Prosoft MVI69E-MBS module ensures reliable data transfer at high speeds between your CompactLogix and MicroLogix processors, making it an indispensable part of your automation ecosystem.

    This module seamlessly integrates as a Generic 1769 module, complete with a sample ladder logic guide to facilitate quick setup and operation.

    Gain real-time insights into your module’s status and data directly through RSLogix 5000 controller tags and User Defined Types (UDTs), enhancing monitoring and control capabilities.

    The Modbus Master/Slave protocol interface allows you to emulate either role across multiple individually-configurable applications, providing unparalleled flexibility in network configurations.

    Optimized for seamless compatibility with CompactLogix processors, the MVI69E-MBS module supports extended functionalities like add-on instructions and profiles, streamlining integration processes and enhancing operational efficiency.
