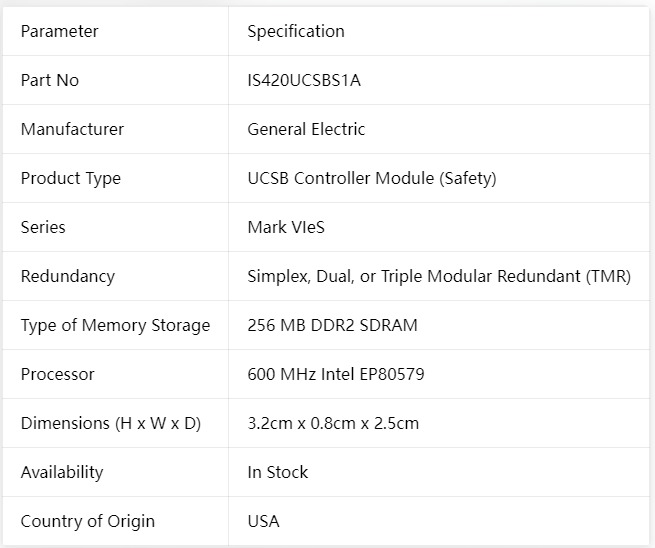

1.Specification:
2. Functional Description
IS420UCSBS1A is a UCSB safety controller module developed by General Electric, designed exclusively for Mark VIe and Mark VIeS industrial turbine control systems (gas turbines, steam turbines). It undertakes core administration and safety control of turbine equipment, and forms Safety Instrumented System (SIS) safety loops with matched safety I/O modules.
This self-contained standalone computing unit has an integrated power supply, no backplane dependency, no on-board battery, and no jumper configuration required. It runs the QNX Neutrino real-time multi-tasking operating system, and communicates with distributed I/O packs via dedicated IONet private industrial Ethernet.
Core Safety Capability
- Complies with IEC 61508 functional safety standards, supports SIL 2 and SIL 3 safety loop applications.
- Certified for hazardous industrial environments with special installation specifications.
- Data synchronization between controllers is auto-executed in Dual / TMR redundant architectures.
3. Module Key Features
Core Hardware Features
- Single compact integrated module design
- Built-in independent power supply unit
- No jumper settings required for configuration
- No backup battery on board
- Fanless cooling structure
- Small cabinet panel footprint, saves installation space
- Flash memory supports convenient online firmware updates
System Communication & Function Features
- Executes core control logic for turbine application programs
- Interacts with all I/O packs via dedicated IONet Ethernet
- Supports configuration parameter editing through ToolboxST software
- Connects to upper supervisory control platforms via standard Ethernet
- No local application input data loss during controller maintenance power-off
- Redundant dual-fan cooling variant available (IS420UCSBS1A series)
4. UCSB Installation Guide
- Mount the single module directly onto control cabinet sheet metal; follow official dimensional drawings for installation size reference.
- Reserve unobstructed vertical airflow through the module heat sink fins to guarantee heat dissipation.
- Configure redundancy mode according to system reliability requirements: Simplex / Dual / TMR.
- For Dual or TMR setups, automatic cross-controller data synchronization is enabled per frame.
5. Frequently Asked Questions
What is IS420UCSBS1A?
IS420UCSBS1A is a UCSB safety controller module for GE Mark VIe / Mark VIeS turbine control systems.
What is the voltage rating of IS420UCSBS1A?
Nominal supply voltage is 28.0 VDC, with operating range 27.4 VDC to 28.6 VDC.
Which Intel processor is used on IS420UCSBS1A?
It is equipped with Intel EP80579 600 MHz CPU as the main processing unit.
