Board Type:Circuit Board
Model Number:DS3800XAIB1E1E
Module Category:GE Boards & Turbine Control
Connector Ports:10 Connector Ports
Test Points:10 Additional Test Points
Components:Various PCB Components
Resistor Types:Small Banded Resistors (Brown, White, Gold)
Metal Components:Black Plastic & Silver-Gold Metal
Resistors:16 Large Resistors, Multiple Small Resistors
Connector Pins:13 Male Connector Pins, 10 Female Connector Pins
LEDs:Over 35 Red LEDs
Screw Mounts:12 Screw Mount Locations
Wiring Harness Compatibility:Female Harness Compatible
Size & Weight:Not specified, refer to manufacturer’s specifications

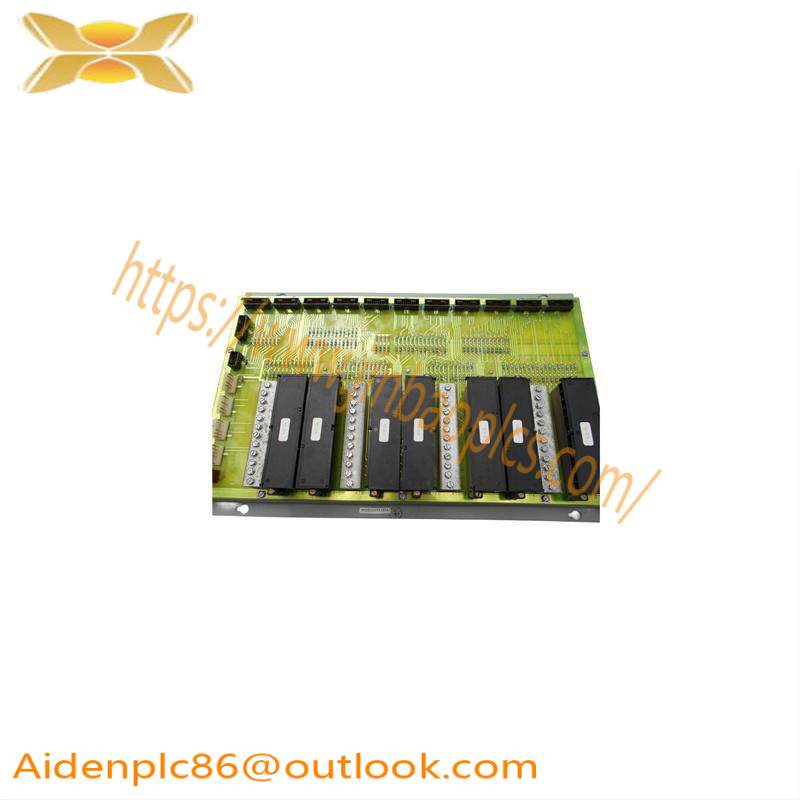

The GE DS3800XAIB1E1E Circuit Board is designed with a sophisticated layout, featuring a blend of large and small components strategically positioned for optimal functionality. The large components, made of black plastic or silver-gold metal, line up on one side of the board, providing critical control functions for high-performance applications. The smaller components, primarily resistors, are meticulously arranged on the opposite side, ensuring minimal interference and efficient power distribution.
This board supports parallel testing with ten test points, enhancing diagnostic capabilities and system troubleshooting. Its robust design ensures compatibility with a wide range of wiring harnesses, making it a versatile choice for integration with existing systems.
The DS3800XAIB1E1E is fabricated using high-quality materials to withstand harsh industrial conditions, ensuring longevity and reliability in demanding environments. The inclusion of over 100 distinct components, including various resistors, capacitors, and diodes, showcases its comprehensive functionality and adaptability.
For ease of maintenance and operational monitoring, the board features a total of 35 red LEDs, providing real-time feedback on system status and health. Additionally, the presence of a small switch allows for manual control and configuration adjustments, giving users greater control over their systems.
AX Control is proud to offer expert support and genuine parts for the DS3800XAIB1E1E Circuit Board, ensuring seamless integration and maintenance services. Our team of knowledgeable professionals is dedicated to helping customers maximize the performance and lifespan of their industrial equipment.
