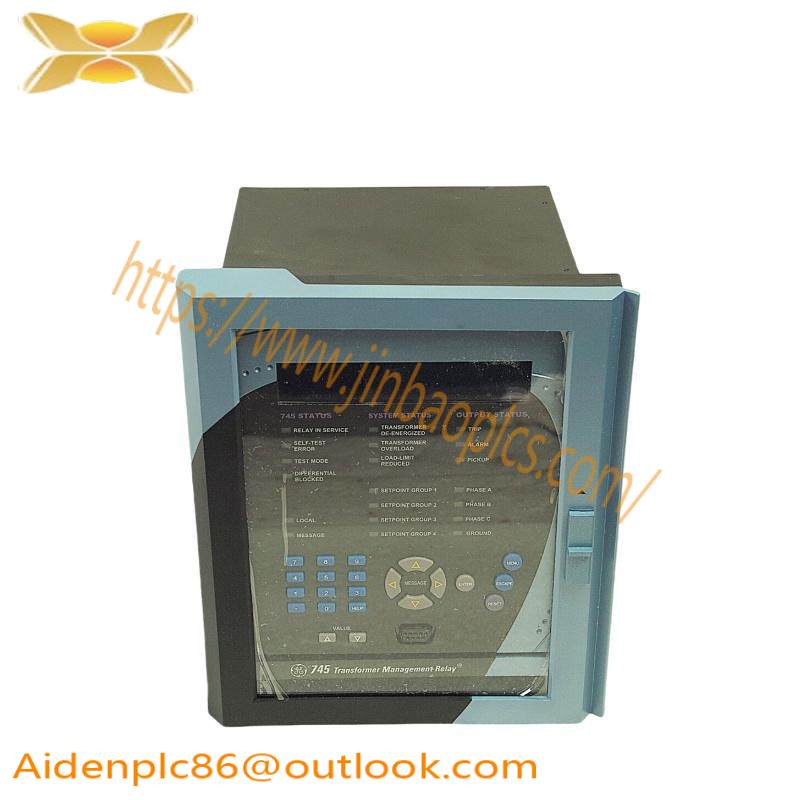

GE 745-W2-P5-G5-HI Transformer Protection Relay for Enhanced Transformer Management

In stock

The GE 745-W2-P5-G5-HI Transformer Protection Relay is designed to safeguard and manage transformer systems, optimizing transformer performance and extending their life expectancy. It is adept at detecting and reacting to faults within transformer systems, ensuring safety and efficiency.

Operating Environment:Humidity up to 90% non-condensing

Weight:4.8kg

Voltage Relay Input:60 to 120 V

Relay Dimensions:9”H, 7 ⅛”D, 7”W

Overload Withstand:1 second at 80 times rated current, continuous at 3 times rated current

Ground Current Relay Input:5 A

Display Type:40 character LCD

The GE 745-W2-P5-G5-HI Transformer Protection Relay is adept at safeguarding and managing transformer systems. It helps in extending the transformer life expectancy and optimizing its performance.

With a robust design, this relay can withstand harsh industrial environments, featuring an operating humidity range up to 90% non-condensing.

The relay ensures safe operation by monitoring voltage and current inputs, providing alerts through its 40-character LCD display.

Its compact size, measuring 9”H, 7 ⅛”D, 7”W, makes it easy to install on standard panels, ensuring minimal space consumption.

The device comes with advanced overload protection, capable of handling 1 second at 80 times the rated current and continuous operation at 3 times the rated current, ensuring durability and reliability.

GE 745-W2-P5-G5-HI
