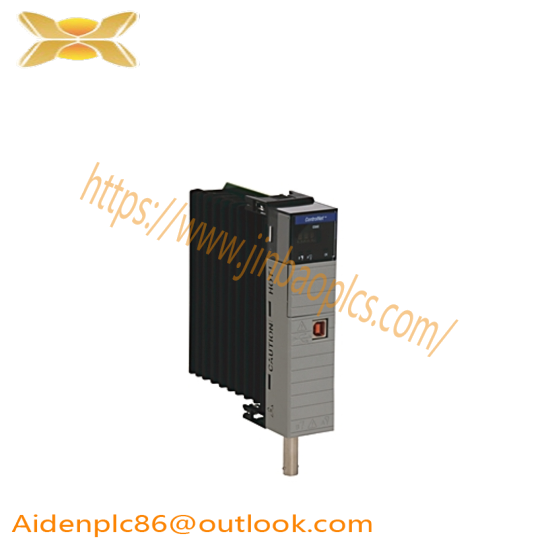

Allen-Bradley 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module

Model Type:Redundant Bridge Module

Manufacturer:Allen-Bradley

Model Number:1756-CN2R/C

Number Of Channels:2

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Communication Interface:ControlNet A/B to Backplane, ControlNet A to ControlNet B

Enclosure Type:Open Type

Rfi Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 1890 MHz, 3 V/M with 1 KHZ Sine-Wave 80% AM from 2000 – 2700 MHz

Temperature Range:0 – 60 °C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Connection:Ethernet

USB Port:Not Included

    Experience unparalleled reliability and redundancy with the 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module. Designed specifically for industrial control applications, this module ensures robust communication between your ControlLogix controllers and ControlNet networks, making it an indispensable component for mission-critical operations.

    Featuring two channels, this module supports high-speed data transfer rates, enabling smooth operation even in the most demanding environments. Its open-type enclosure ensures easy integration into existing control systems without compromising on performance.

    The module’s isolation technology provides a continuous 30 V level, safeguarding against potential electrical disturbances and ensuring data integrity. It is meticulously tested to withstand extreme environmental conditions, including vibration and shock, guaranteeing dependable operation across various industrial settings.

    With support for ControlNet A/B to backplane and ControlNet A to ControlNet B connections, the 1756-CN2R/C module facilitates seamless network communication, enhancing system efficiency and reducing downtime. Its compatibility with 802.3-compliant shielded or unshielded twisted pair cables ensures flexible installation options.

    Crafted with precision, this Allen-Bradley module is a testament to the company’s commitment to innovation and quality. Its compact design and versatile features make it an ideal choice for upgrading or expanding your existing control systems, driving productivity and efficiency in industrial automation.
