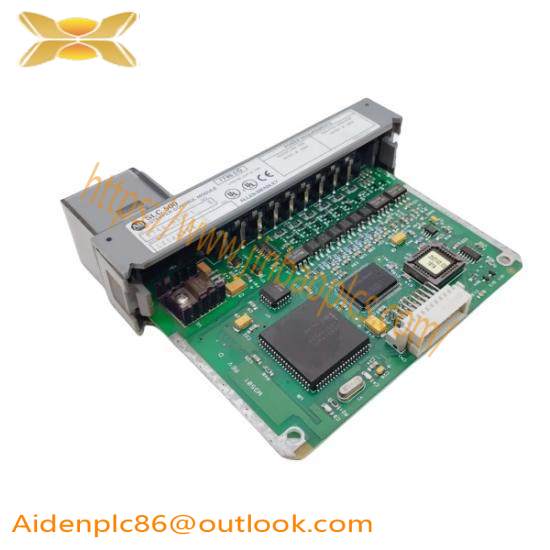

Allen Bradley 1746-HSTP1 Stepper Control Module

Type:Stepper Control Module

Model Number:1746-HSTP1

Manufacturer:Allen Bradley

Power Supply Voltage:24V DC

Input Current:Less than 25mA

Output Current:Up to 0.5A

Operating Temperature Range:-10°C to +60°C

Communication Interface:RS-485

Enclosure Type:IP20

Connection Ports:1 x DB-9 connector

Load Capacity:100 ohms

Control Protocol:Modbus RTU

    Integrating the Allen Bradley 1746-HSTP1 Stepper Control Module into your automation system offers unparalleled precision and reliability in controlling stepper motors. This module is specifically engineered for applications requiring high-speed, accurate positioning, such as robotics, CNC machinery, and factory automation.

    With its ability to handle up to five stepper motors per channel and support voltages from 24VDC to 50VDC, this module ensures efficient power distribution and optimal performance under varying conditions. Its compact design and IP20 enclosure type make it suitable for both indoor and controlled outdoor environments.

    Equipped with a Modbus RTU interface, the 1746-HSTP1 facilitates seamless integration with a wide range of automation systems and control panels. The inclusion of isolation measures protects against electrical surges, ensuring stable operation and prolonging the lifespan of connected devices.

    Featuring a low power consumption of up to 1W, this module is energy-efficient, contributing to lower operational costs and reduced environmental impact. Additionally, it adheres to international safety standards like UL and CE, providing peace of mind for users in diverse markets around the world.

    For those seeking a solution that delivers exceptional control, efficiency, and compatibility, the Allen Bradley 1746-HSTP1 Stepper Control Module is the ideal choice, offering a perfect blend of technology and reliability.
