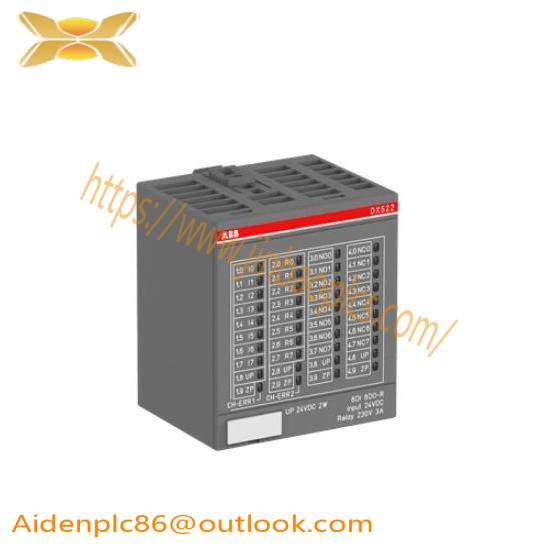

ABB DX522 – 1SAP245200R0001 – 8DO Relay Module

Brand:ABB

Model:DX522 – 1SAP245200R0001

Series:Industrial Automation Modules

Channel Count:8

Relay Type:Relay Output

Operating Voltage:24 VDC

Relay Rating:5A @ 240VAC

Contact Configuration:SPDT

Communication Interface:Profinet

Dimensions (WxHxD):100mm x 90mm x 50mm

Weight:0.5kg

Environmental Rating:IP20

Operating Temperature:-20°C to +70°C

    Integrating cutting-edge technology, the ABB DX522 – 1SAP245200R0001 provides superior reliability and performance in industrial settings. Its compact design ensures minimal space consumption while offering a high switching capacity.

    This 8-channel relay module is ideal for use in diverse industrial automation scenarios, including machine control, process monitoring, and safety systems. Its SPDT relays facilitate precise control over electrical circuits.

    With a versatile voltage range from 12 to 48 VDC and a robust current rating of 5 A at 250 VAC, this module is suitable for a broad spectrum of applications requiring efficient power management.

    Featuring a 10 ms switching speed, the ABB DX522 ensures quick response times, enhancing system responsiveness and reducing downtime. The IP20 environmental rating guarantees protection against dust and splashes, ensuring durability in harsh industrial environments.

    For ease of installation and maintenance, this module utilizes a terminal block connection, making it simple to integrate into existing systems. Moreover, it complies with international safety standards, including CE, UL, and CSA certifications, ensuring its compatibility and safety across global markets.
