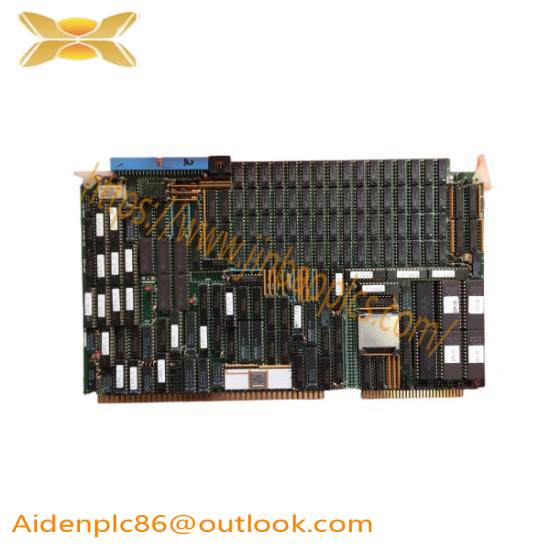

ABB Bailey IIMGC01 SX-9000/64-8/B2 Network Process Module

Product Type:Network Process Module

Model:IIMGC01 SX-9000/64-8/B2

Brand:ABB Bailey

Module Type:Network Process

Power Consumption:≤ 6.0W

Operating Temperature:-20°C to 70°C

Storage Temperature:-40°C to 85°C

Communication Interface:RS-485, CANopen

Dimensions (WxDxH):96mm x 124mm x 32mm

Weight:≤ 100g

Communication Protocol:Modbus TCP/IP, EtherCAT

Number of Analog Inputs:8

Number of Analog Outputs:8

Number of Digital Inputs:16

Number of Digital Outputs:16

Data Processing Capacity:Up to 10,000 instructions per second

    The ABB Bailey IIMGC01 SX-9000/64-8/B2 Network Process Module is a versatile and efficient component tailored for seamless integration into ABB‘s advanced automation systems. This module is equipped with state-of-the-art technology that ensures high-speed data transfer and robust communication capabilities, essential for optimizing production efficiency and maintaining system reliability.

    Engineered with an advanced microcontroller, it provides ample processing power for complex algorithms and tasks, making it suitable for a wide range of industrial applications. The inclusion of 64MB Flash Memory allows for extensive storage capacity, enabling the module to handle large amounts of data and software updates effortlessly.

    Featuring two Ethernet ports for redundant network connections and one USB port for easy firmware updates, this module ensures a reliable and flexible communication infrastructure. It supports industry-standard protocols such as Ethernet/IP and OPC-UA, facilitating seamless integration with various devices and systems within the industrial ecosystem.

    With an operating temperature range from -20°C to +55°C, the ABB Bailey IIMGC01 SX-9000/64-8/B2 is designed to withstand challenging environmental conditions encountered in industrial settings. Its compact size and robust construction make it ideal for space-constrained environments, enhancing its versatility and adaptability.

    Equipped with 16 digital input channels and 8 digital output channels, this module offers a comprehensive set of I/O capabilities, enabling precise control and monitoring of industrial processes. The connectivity options provide flexibility for various configuration needs, allowing users to tailor their automation systems to specific requirements.
