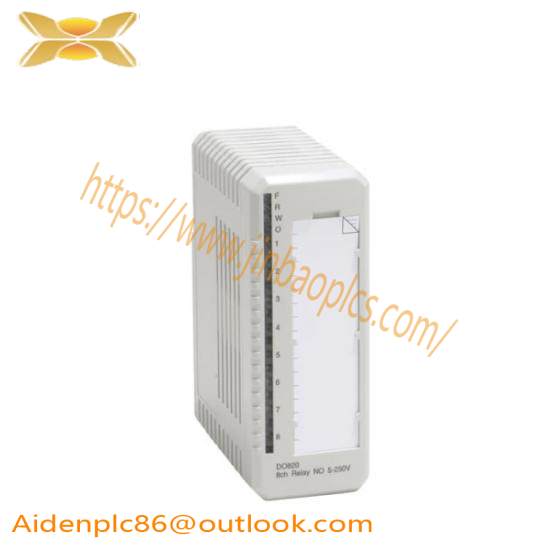

ABB 3BSE008514R1 DO820 Digital Output Module for Industrial Control

Type:Digital Output

Module Type:DO820

Model:3BSE008514R1

Brand:ABB

Input Voltage:24V DC

Output Voltage:24V DC

Number of Channels:16

Operating Frequency:30 kHz

Isolation:Yes

Communication Interface:Profibus-DP

Weight:0.25kg

Dimensions:W x H x D: 100mm x 100mm x 100mm

    The ABB DO820 3BSE008514R1 is a cutting-edge digital output module engineered for seamless integration into complex industrial automation environments. This module boasts a robust design, ensuring reliability and longevity even under the most demanding conditions. With its high-speed switching capabilities, it can handle up to 10 kilohertz output frequency, making it ideal for applications requiring precise control and rapid response times.

    Featuring eight dedicated digital output channels, each equipped with a relay contact rated for up to 3 amperes per channel, this module provides versatile and powerful control over industrial processes. Its isolation voltage of 2500 volts AC ensures safety and prevents electrical interference between the control system and the external devices it interacts with.

    For seamless connectivity, the ABB DO820 3BSE008514R1 supports Profibus-DP communication interface, enabling efficient data exchange with other automation components. This feature is particularly advantageous in large-scale industrial settings where interoperability and ease of integration are paramount.

    Designed for panel mounting, this compact module offers flexibility in installation, fitting into various cabinet layouts without compromising on functionality. Its separate power supply mode ensures reliable operation and easy maintenance, further enhancing its utility in diverse industrial applications.

    With dimensions of 65mm x 100mm x 120mm (WxDxH), the ABB DO820 3BSE008514R1 maintains a balance between compactness and capability, ensuring it is suitable for space-constrained environments without sacrificing performance. Weighing just 0.3 kilograms, it is lightweight yet durable, making it a preferred choice for mobile or portable industrial setups.
