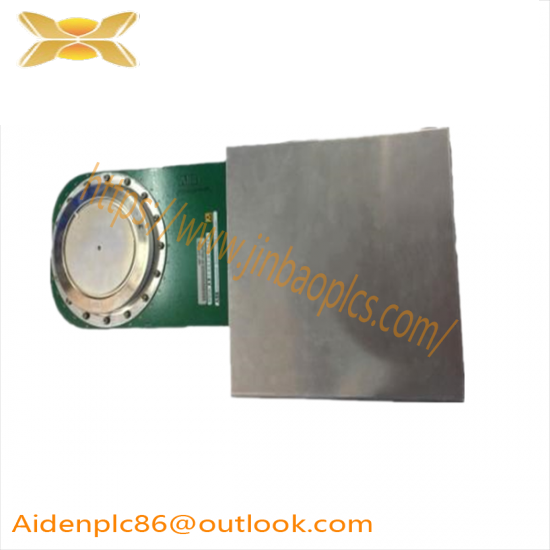

3BHB004692R001 – ABB Module

Design Type:IGCT Module

Brand:ABB

Model:3BHB004692R001

Module Type:IGCT

Operating Temperature Range:-40°C to +85°C

Current Rating:Up to 1000 A

Voltage Rating:Up to 690 V AC

Switching Frequency:Up to 1 kHz

Insulation Class:F

Input Capacitance:Less than 5 nF

Output Inductance:Less than 10 μH

Dimensions:200 mm x 100 mm x 30 mm

Weight:1.5 kg

Certification:UL, CE, IEC

Series:Advanced Control Solutions by ABB

    Innovative design for superior power management and control, tailored for demanding industrial environments.

    Comprehensive protection mechanisms against overvoltage, overcurrent, and thermal stress, ensuring prolonged operational life.

    High thermal conductivity materials facilitate efficient heat dissipation, enhancing system reliability.

    Ease of integration into existing systems, with compatibility across various control protocols for seamless operation.

    Durable construction withstands harsh industrial conditions, reducing maintenance costs and downtime.
